F150 Upfitter Wiring Harness

More stock due by the end of April 2025

Turn the short, poorly placed, hard to get to factory upfitter wires into easy to access, plug n' play connections to easily add accessory lighting and other electrical accessories to your factory upfitter switches.

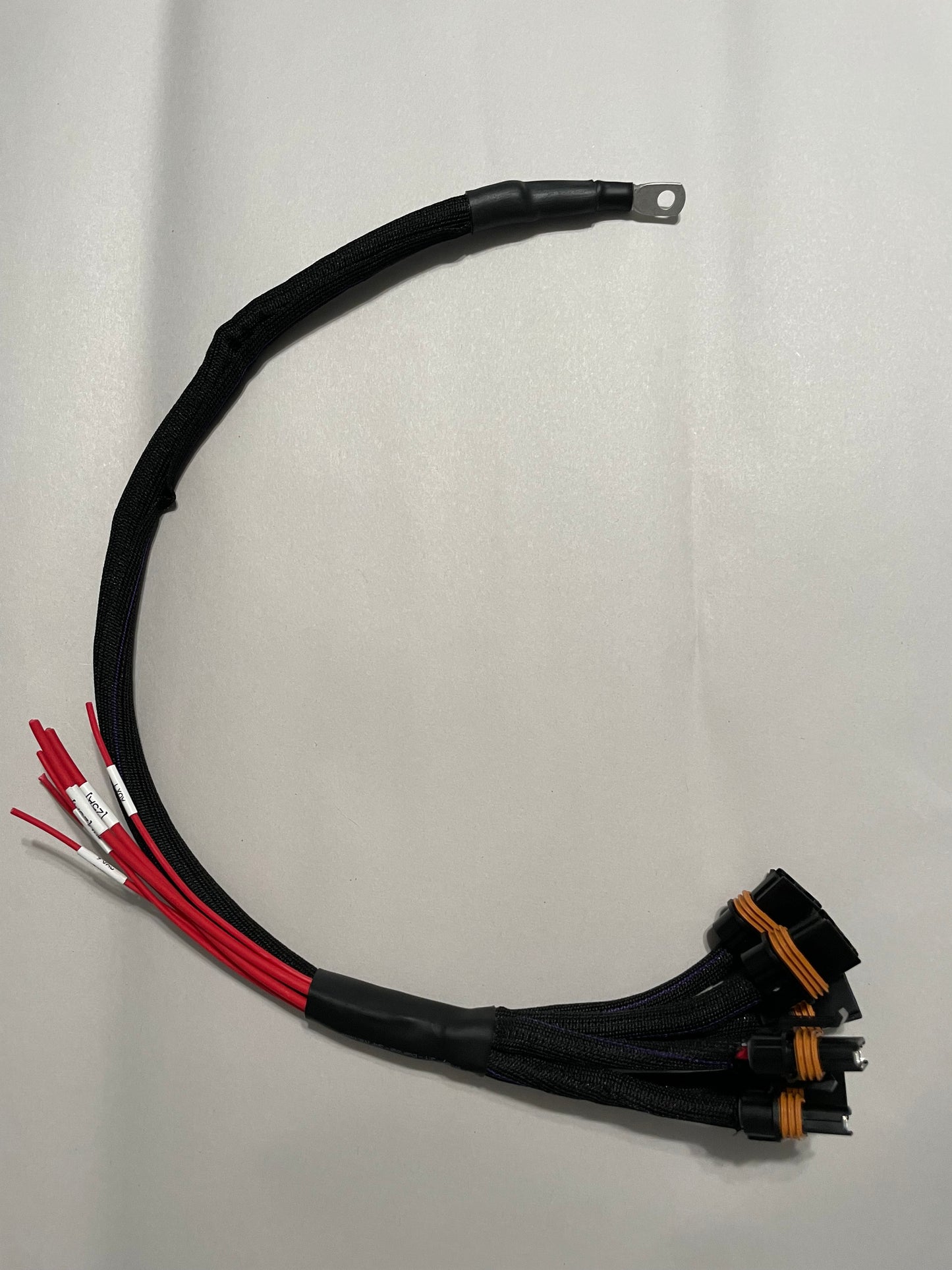

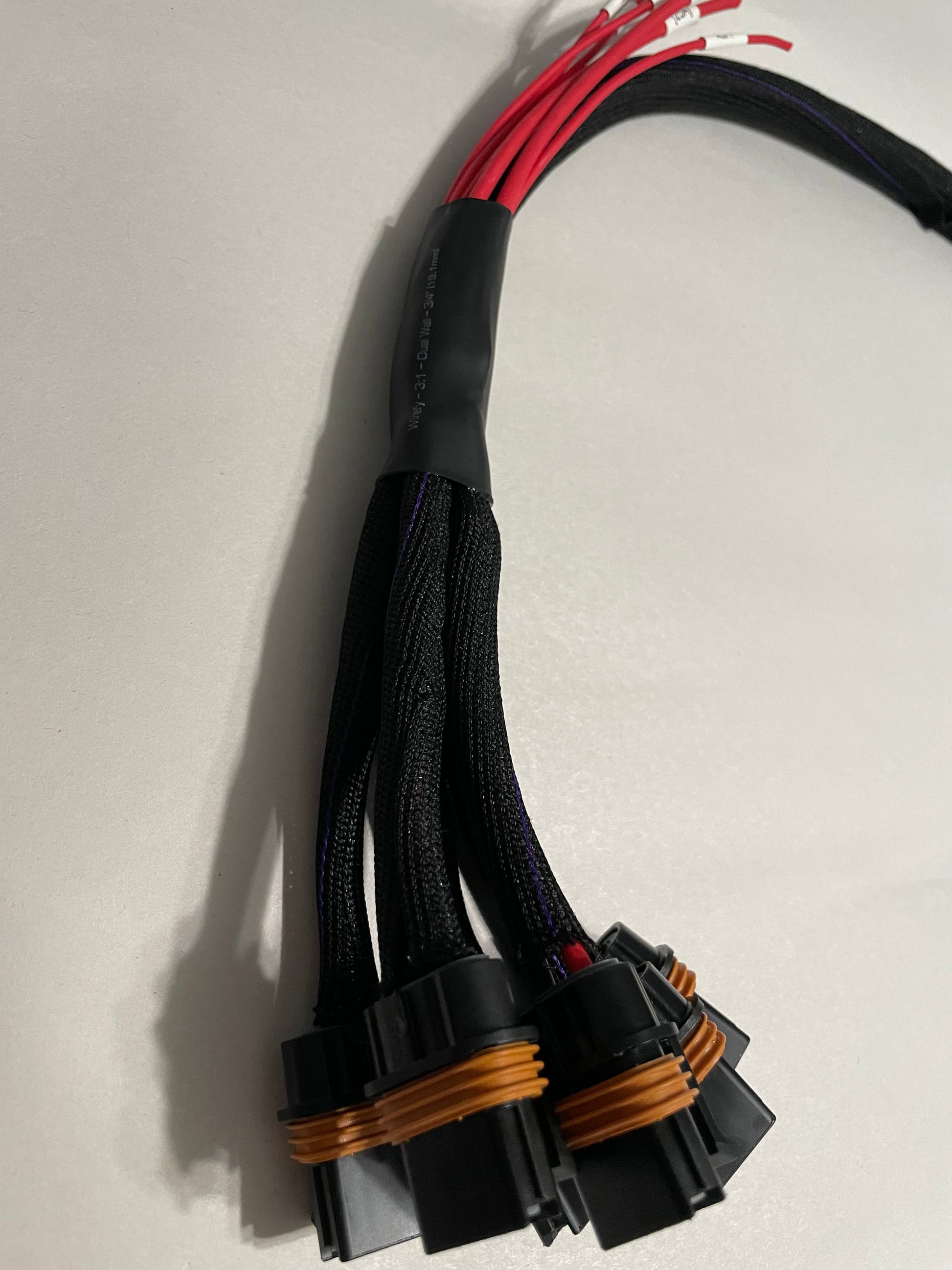

This harness takes your 6 factory upfitter wires and converts them to 6 x 2 pin(power and ground) waterproof connectors. Adding auxiliary lighting couldn't be any easier.

All connections are labeled with switch # and Current Rating for that switch.

Only Tools Needed:

Wire strippers to strip the factory wiring

Heatgun/Hair dryer or lighter to shrink shrink tubing

Wrench to add ground lines to battery negative terminal

 Note: The 2 15amp switches are no longer limited to 13 amps for this revised version.

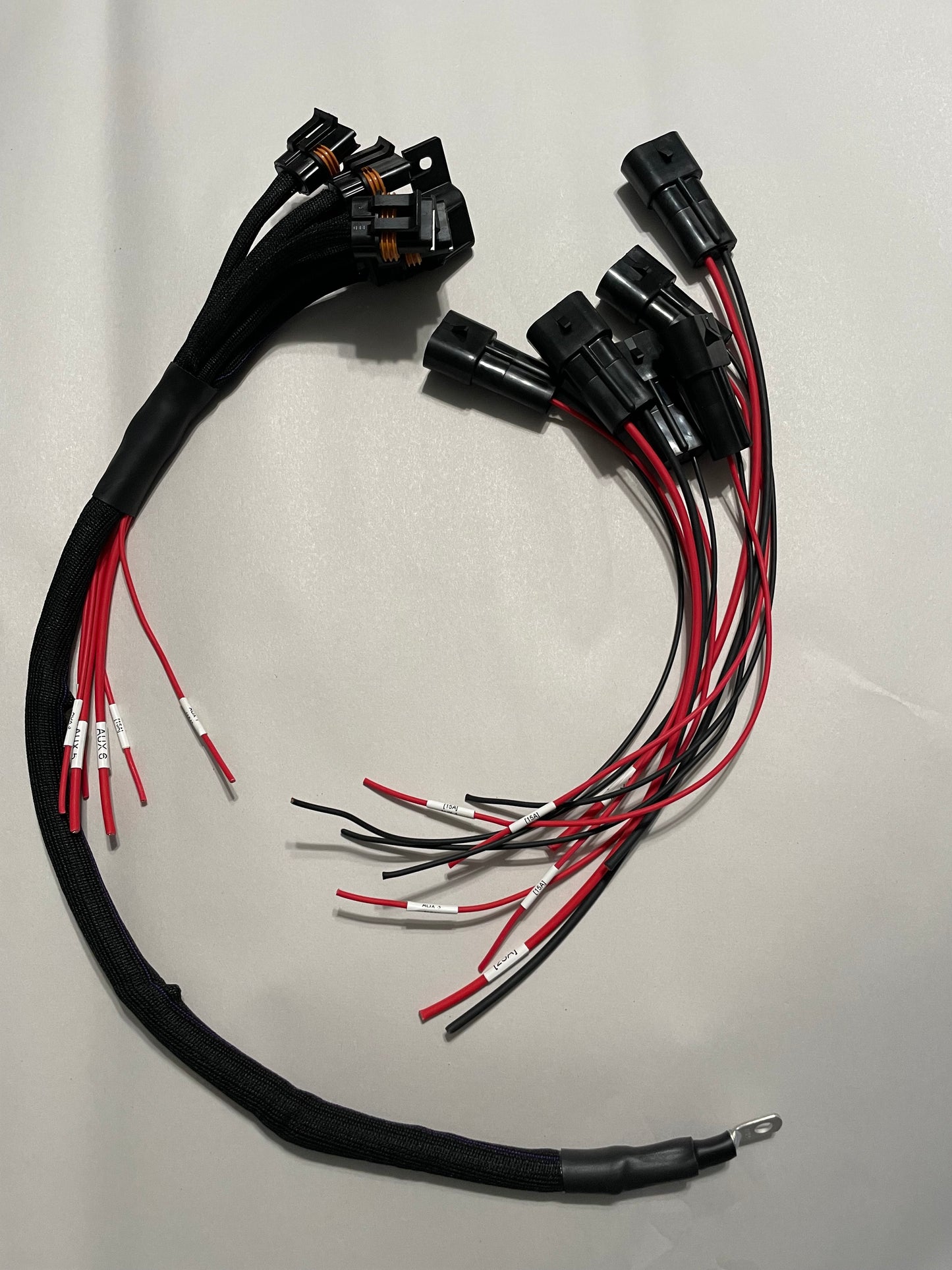

Also included are 6 x 2 pin male connectors with pigtails to splice to any accessories that don't come with this type of connector so that hook up is easy and fast.

6 caps also now included to cover unused connections.

Installation Instructions: https://docs.google.com/document/d/1-TKp-GtnFbu9dyN2_47xUuDUIgZHlhEum0HUvUhTPog/edit?usp=sharing

Compatibility:

2021+ F150 Tremors

2021+ F150 Raptors (Note: One of the factory upfitter wires is already consumed by a set of fog lights so only 5 additional ports are useable on this harness)

Gen 2 F150 Raptors


Note: harness received may appear different physically based on materials available at order. Functionality will be unchanged. Differences would be in sheathing color.
