Plug N Play Harness for 2021+ F150 Lower Bumper Diode Dynamics Pods

Items Ordered after 12/12 will ship in January

If you have the lower bumper aux light bracket from SapceWhiteF150(AKA Connor Blai), this harness is for you!

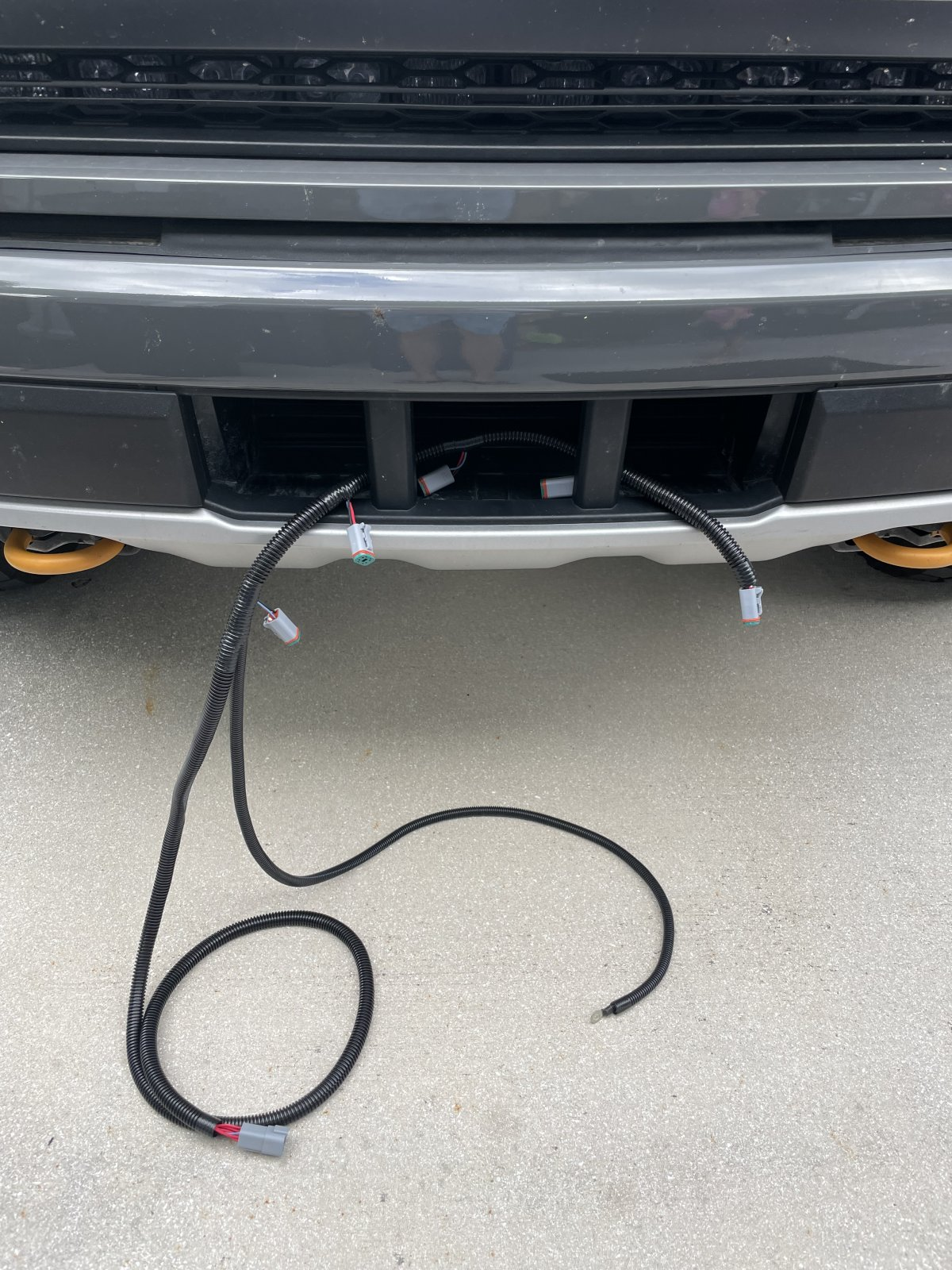

This harness provides easy plug and play connection of up to 5 Diode dynamics SS3 pods with Backlighting mounted in the lower bumper opening on the 2021+ F150.

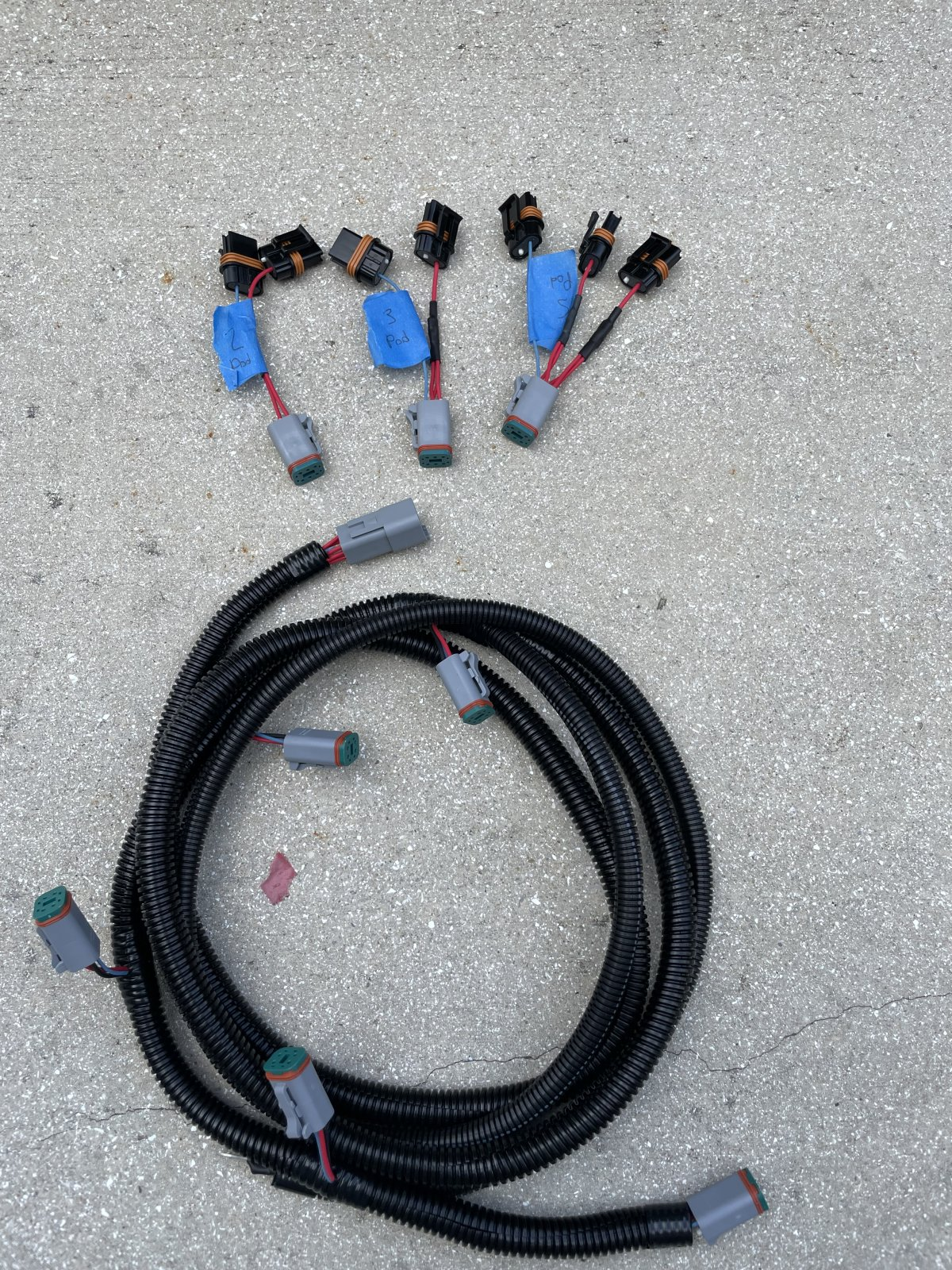

what's included:
1 x Main harness that ties up to 5 pods into 1 of 3 configurations:

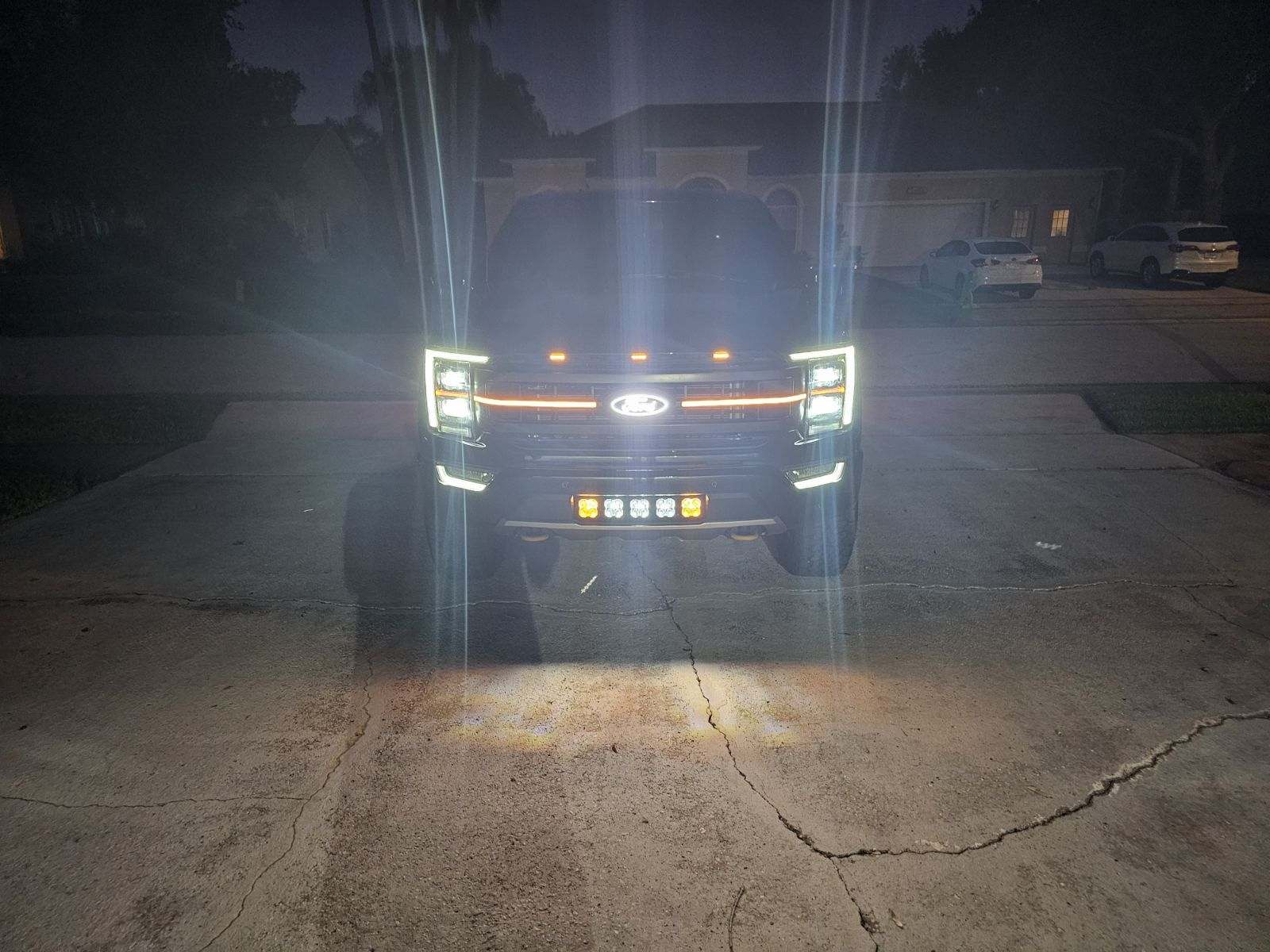

1) 5 pods, 2 outside on one switch, 3 inside on another, all backlights on a 3rd.

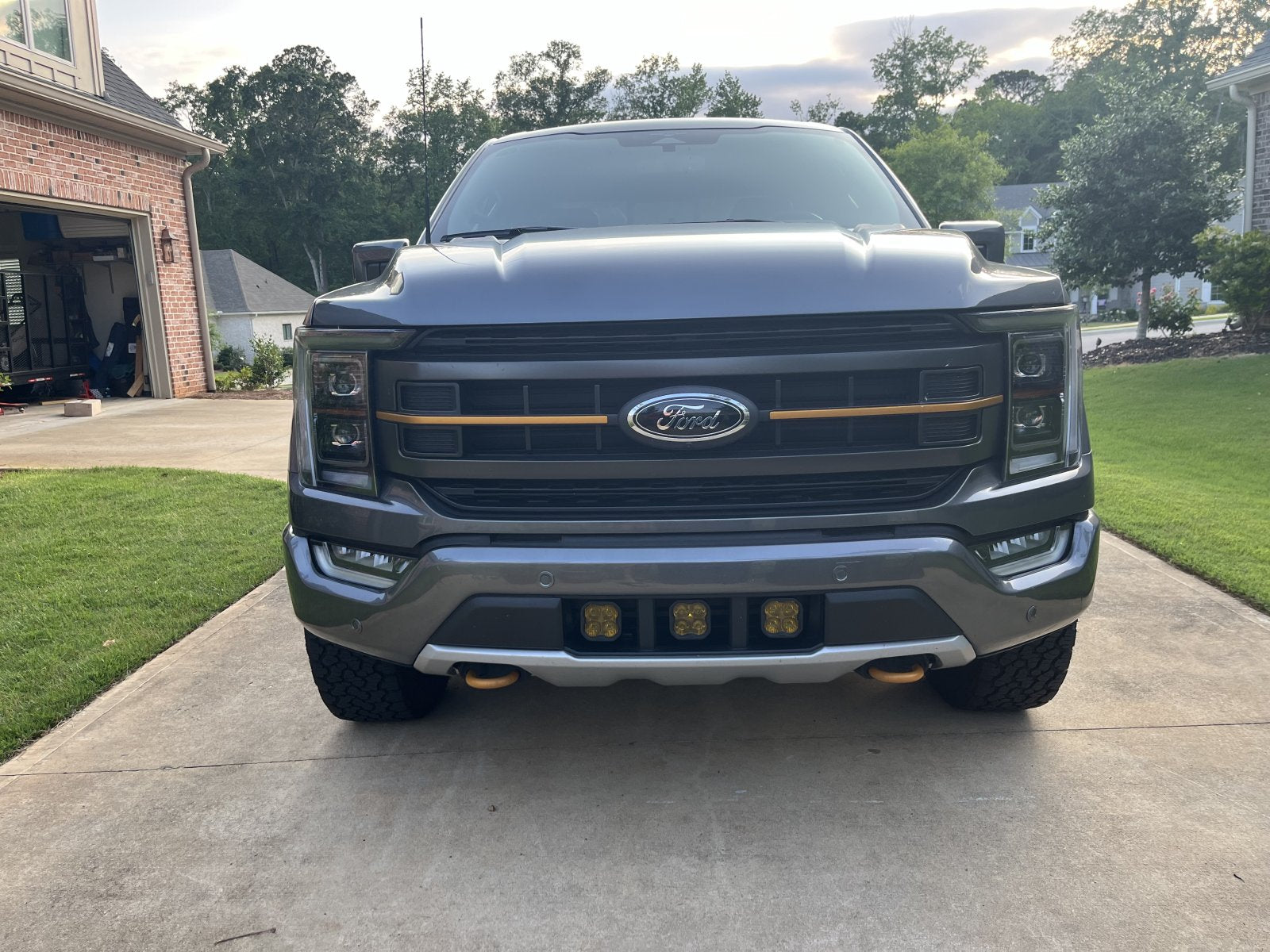

2) 3 pods all on one switch, all backlights on another

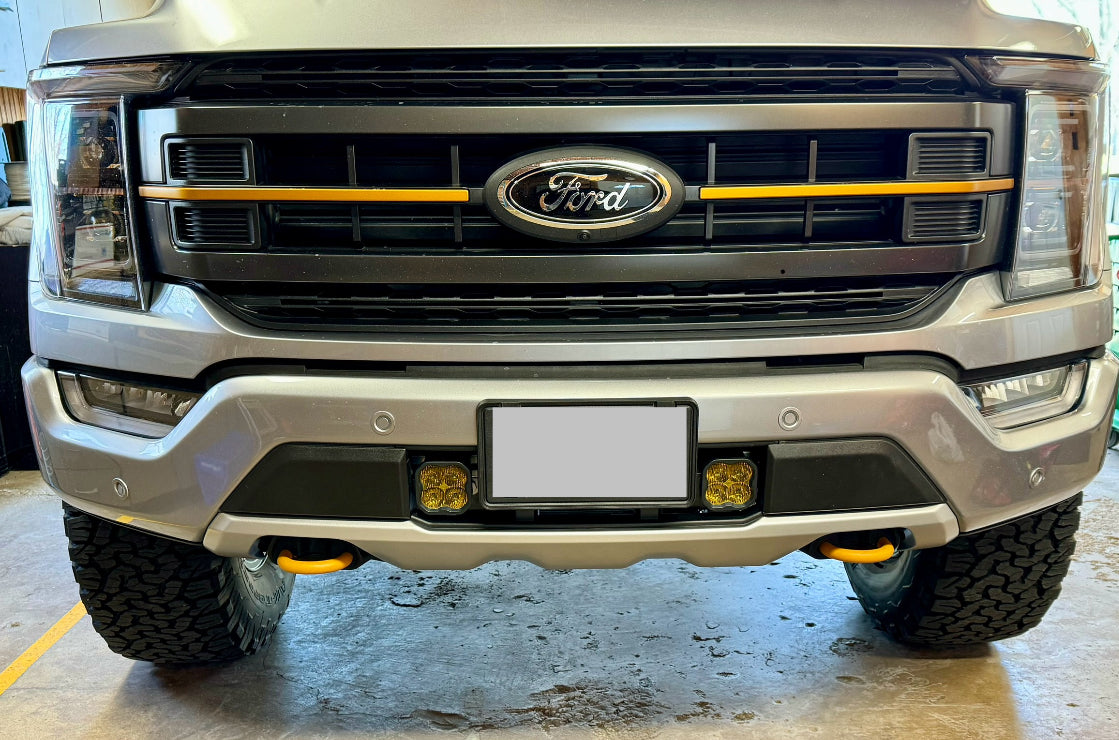

3) 2 pods on one switch, all backlights on another

3 x sub harnesses to convert the main harness into each of the 3 above configurations

This will be plug n play with the revision 2 of my upfitter harness. if you have revision 1 of my upfitter harness, all you have to do is swap the connectors on the provided sub harnesses to the pigtails that i provided with the upfitter harness.

If you don't have my upfitter harness, you can cut the connectors off of the sub harnesses and splice to the oem upfitter wires or to a switch panel of your choice(ie. aux beam, spod, etc.).

Note: THis harness does not work for non Backlit pods as those use a 2 pin connector rather than a 4 pin.

DISCOUNT: when bundled with an upfitter harness, you will receive 10% off of the upfitter harness. Both items must be in your cart  discount will automatically show up in your cart/checkout
